Modern buildings need a reliable supply of fresh outdoor air while also maintaining comfortable indoor temperatures and controlled energy use. Conventional ventilation can remove stale air effectively, but it can also discard the heating or cooling energy contained in that air. A heat recovery ventilation system addresses this challenge by transferring energy between outgoing and incoming air streams. The recovered energy can help precondition fresh air before it reaches the main HVAC equipment. This makes heat recovery ventilation an important consideration for buildings that require continuous ventilation and efficient air treatment.
What Is a Heat Recovery Ventilation System?
A heat recovery ventilation system is designed to provide fresh outdoor air while recovering energy from air being exhausted from a building. The system uses a heat exchanger or recovery core to transfer thermal energy between the outgoing and incoming air streams. The two air streams remain separated while energy moves through the recovery media. During heating conditions, energy from warmer exhaust air can help warm incoming outdoor air. During cooling conditions, the process can work in the opposite direction to reduce the cooling load associated with fresh air.
The effectiveness of the system depends on the recovery technology, airflow rates, temperature difference, humidity conditions, and equipment design. Some systems recover sensible heat, while energy recovery ventilators can also transfer latent energy in the form of moisture. This distinction matters because outdoor humidity can significantly influence HVAC loads in many climates. A properly selected system can therefore support both ventilation and energy management. The system should be evaluated according to the building’s actual ventilation requirements and environmental conditions.
See also: What Does a Career Coach Do and When Should You Work With One?
Heat Recovery vs. Energy Recovery
Heat recovery and energy recovery are related concepts, but they are not identical. Heat recovery generally refers to the transfer of sensible thermal energy between air streams. Energy recovery can include both sensible heat and latent energy transfer when the recovery media permits moisture exchange. This makes energy recovery ventilators useful in applications where humidity is an important part of the ventilation load. The appropriate technology depends on the climate, indoor conditions, and building requirements.
An energy recovery approach can provide several functions within the ventilation process:
- Recovery of sensible heat
- Transfer of latent energy where applicable
- Preconditioning of incoming outdoor air
- Reduction of ventilation-related HVAC loads
- Controlled exchange between supply and exhaust air
The performance of these functions depends on equipment design and operating conditions. Recovery efficiency should be considered alongside airflow, pressure drop, filtration, and fan energy. A system should not be selected based on a single efficiency figure without considering the complete application. Proper engineering helps ensure that the recovery equipment supports the building’s ventilation strategy.
How Does a Heat Recovery Ventilation System Work?
A heat recovery ventilation system operates by moving two separate air streams through a recovery core. One stream contains fresh outdoor air entering the building, while the other carries stale indoor air toward the exhaust outlet. As these streams pass through the recovery media, thermal energy moves from one stream to the other. The air streams remain separated, which prevents direct mixing while allowing energy transfer. The incoming air can therefore reach the HVAC system closer to the desired indoor conditions.
The process operates continuously while the ventilation system is running. Fans maintain the required supply and exhaust airflow, while filters protect the system and help manage airborne contaminants. Controls can regulate airflow and coordinate operation with building requirements. Recovery performance can vary depending on outdoor temperature, indoor conditions, airflow balance, and the condition of the recovery media. Regular maintenance is therefore important for maintaining consistent operation.
Fresh Outdoor Air Intake
Fresh outdoor air enters through the supply side of the ventilation equipment. Depending on the application, the incoming air may pass through filters before reaching the recovery core. Filtration helps reduce dust and other airborne particles entering the ventilation system. Outdoor temperature and humidity also influence how much energy can be recovered during the process.
Exhaust Air From the Building
Indoor air is collected and directed toward the exhaust side of the system. This air can contain useful thermal energy because it has already been conditioned by the building’s HVAC equipment. Instead of releasing all of that energy directly outdoors, the recovery system transfers a portion of it to the incoming air stream. This reduces the amount of conditioning required after the fresh air enters the building.
Energy Transfer Between Air Streams
The recovery core provides the surface or media through which energy moves between the two air streams. In a sensible heat recovery system, the primary transfer involves temperature. In an energy recovery system, the media may also transfer moisture between the air streams. The two air paths remain separated during this process. This allows ventilation to continue while recovering part of the energy that would otherwise leave with exhaust air.
Main Components of a Heat Recovery Ventilation System
A heat recovery ventilation system contains several components that work together to provide controlled ventilation and energy recovery. The recovery core is the central component, but fans, filters, dampers, controls, and the equipment housing also affect overall performance. Each component must be selected according to the required airflow and operating conditions. Proper integration is particularly important because pressure losses across filters and recovery media influence fan energy.
Common components include:
- Energy recovery or heat recovery core
- Supply air fan
- Exhaust air fan
- Outdoor and exhaust air filters
- Dampers
- Sensors and controls
- Airflow housing and separation sections
The recovery core should provide the required thermal or energy transfer without creating excessive pressure drop. Fans must be capable of maintaining the required airflow through the complete system. Filters need to provide suitable air treatment while remaining compatible with the system’s pressure limitations. Controls can also help coordinate airflow, temperature, and humidity according to the building’s needs.
Benefits of a Heat Recovery Ventilation System
One of the main benefits of heat recovery ventilation is the ability to provide fresh air without discarding all of the energy contained in exhaust air. This can reduce the conditioning work required to bring outdoor air closer to indoor conditions. The actual energy impact depends on climate, ventilation rates, operating schedules, recovery efficiency, and HVAC system performance. Recovery systems can therefore be particularly useful in buildings with significant outdoor air requirements.
Potential benefits include:
- Reduced ventilation-related heating and cooling loads
- More controlled outdoor air supply
- Recovery of sensible thermal energy
- Latent energy recovery with suitable ERV technology
- Improved management of indoor temperature conditions
- More efficient use of conditioned exhaust air
Energy recovery can also work alongside other air treatment technologies. For example, a ventilation system may use filtration to remove airborne contaminants before supplying fresh air to occupied spaces. Granular media filtration can be considered for applications requiring removal of specific gaseous contaminants or odors. The appropriate filtration technology depends on the air quality requirements and contaminants present.
Heat Recovery Ventilation and Indoor Air Quality
Ventilation plays an important role in managing indoor air quality because buildings need a controlled supply of outdoor air while removing stale indoor air. A heat recovery system can support this process by allowing ventilation to continue while recovering energy from the exhaust stream. However, heat recovery itself is not a complete air purification solution. Filtration, ventilation rates, source control, and building operation all contribute to overall indoor air quality.
Filtration should be selected according to the type of contaminants that need to be controlled. Particulate filters can address airborne particles, while specialized media can target certain gases and odors. For applications with broader air purification requirements, a best air purification system should be selected based on the specific contaminants and required performance rather than relying on a single technology. Recovery and purification can operate together, but they perform different functions within the air treatment process.
Heat Recovery Ventilation vs. Conventional Ventilation
Conventional ventilation can supply outdoor air and exhaust indoor air without recovering the energy contained in the exhaust stream. This approach can result in greater heating or cooling requirements because the HVAC system must condition more of the incoming outdoor air. Heat recovery ventilation adds an energy transfer stage between the incoming and outgoing air streams. This allows part of the energy from the exhaust air to be reused before the fresh air reaches the main conditioning equipment.
The difference can be summarized as follows:
| Factor | Heat Recovery Ventilation | Conventional Ventilation |
| Fresh air supply | Yes | Yes |
| Exhaust air removal | Yes | Yes |
| Energy recovery | Yes | Generally no |
| Heat transfer | Recovered between air streams | Released with exhaust air |
| Moisture recovery | Possible with ERV technology | Generally not |
| HVAC ventilation load | Can be reduced | Usually higher |
The choice depends on the building’s ventilation requirements and energy strategy. Recovery equipment introduces additional components, pressure losses, and maintenance requirements that must be considered during design. A complete evaluation should therefore consider both energy recovery potential and system operating costs.

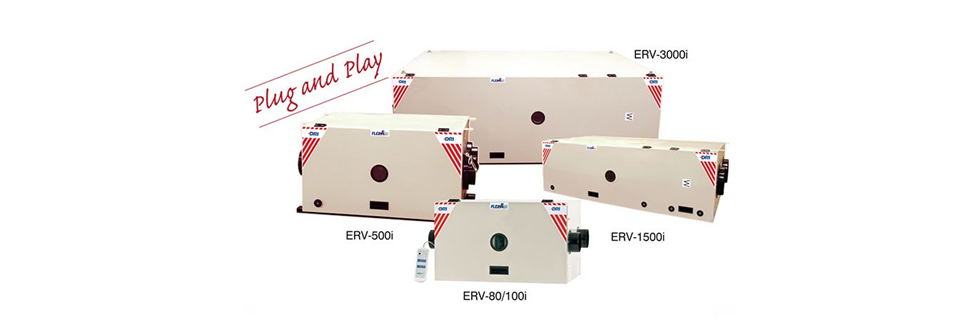

What Is an Energy Recovery Ventilator?
An Energy Recovery Ventilator, commonly called an ERV, is a ventilation system that can transfer both sensible and latent energy between incoming and outgoing air. Sensible energy relates primarily to temperature, while latent energy is associated with moisture. The recovery media allows energy exchange while keeping the supply and exhaust air paths separated. This can help moderate both temperature and humidity differences between outdoor and indoor air.
An ERV can be useful when humidity transfer is an important consideration in ventilation design. The actual level of sensible and latent recovery depends on the equipment design and operating conditions. Climate, airflow, indoor humidity, and outdoor air conditions should all be considered when selecting the system. An ERV is therefore not automatically appropriate for every application, and the recovery characteristics should match the building’s needs.
Where Are Heat Recovery Ventilation Systems Used?
Heat recovery ventilation can be considered for buildings that require regular outdoor air exchange and have significant heating or cooling loads associated with ventilation. Commercial buildings, hotels, healthcare facilities, institutional buildings, and selected industrial environments can require controlled ventilation throughout operating hours. The required equipment capacity varies according to occupancy, airflow rates, operating schedules, and environmental conditions.
Typical applications include:
- Commercial office buildings
- Hotels and hospitality facilities
- Healthcare and institutional buildings
- Educational facilities
- Retail and commercial complexes
- Industrial and manufacturing facilities
Buildings with high ventilation requirements can have substantial energy associated with conditioning outdoor air. Recovery technology can help reduce this load by transferring energy from the exhaust stream. The system still needs to be sized according to the required outdoor airflow and operating conditions. Proper filtration and controls should also be included where the application requires additional air treatment.
Factors to Consider When Selecting a Heat Recovery Ventilation System
Selecting the right system requires an assessment of the building’s ventilation and environmental conditions. Required outdoor airflow should be established based on occupancy, building use, applicable ventilation requirements, and operating schedules. Recovery efficiency should then be evaluated alongside pressure drop, fan energy, filtration, and maintenance requirements. Climate is also important because temperature and humidity differences determine the potential for sensible and latent energy recovery.
Important selection factors include:
- Required supply and exhaust airflow
- Sensible and latent recovery performance
- Outdoor temperature and humidity
- Indoor temperature and humidity
- Pressure drop across the system
- Fan efficiency
- Filtration requirements
- Control and monitoring capabilities
- Maintenance and service access
System sizing is particularly important because both undersized and oversized equipment can create operational challenges. The recovery system should provide the required airflow while maintaining appropriate pressure and energy performance. Filters and recovery media should also be accessible for inspection and maintenance. Evaluating the complete ventilation system rather than a single component can lead to a more suitable design.
How to Maintain a Heat Recovery Ventilation System
Regular maintenance helps preserve ventilation performance and energy recovery efficiency. Filters should be inspected and replaced according to their loading conditions and manufacturer recommendations. The recovery core should also be inspected for contamination, damage, or airflow restrictions. Fans, dampers, seals, sensors, and controls should be checked as part of routine service.
Maintenance activities can include:
- Inspecting and replacing air filters
- Checking recovery media and core condition
- Monitoring pressure drop
- Inspecting fans and motors
- Checking dampers and seals
- Testing sensors and controls
Clean filters and unobstructed airflow are important because excessive pressure drop can affect system performance. Air leakage can also reduce the effectiveness of energy recovery by allowing unwanted airflow between different sections. Regular inspection can help identify these issues before they significantly affect operation. Maintenance schedules should always reflect equipment specifications and actual operating conditions.
Conclusion
A heat recovery ventilation system provides a way to combine controlled fresh-air ventilation with energy recovery. By transferring energy between incoming outdoor air and outgoing indoor air, the system can reduce the amount of conditioning required for ventilation. Energy recovery ventilators can provide additional moisture transfer where latent energy recovery is appropriate. The overall performance depends on correct sizing, airflow balance, recovery efficiency, filtration, controls, and maintenance.
Heat recovery should be considered as part of the complete building air treatment strategy rather than as an isolated technology. The right system depends on climate, building use, ventilation requirements, indoor conditions, and desired energy performance. Careful engineering can help ensure that the recovery equipment works effectively with the wider HVAC system. For technical guidance or project-specific requirements, you can contact Desiccant Rotors International.
Frequently Asked Questions About Heat Recovery Ventilation Systems
1. What is a heat recovery ventilation system?
A heat recovery ventilation system supplies fresh outdoor air while recovering energy from exhaust air. A recovery core transfers thermal energy between the two separate air streams before the fresh air reaches the building’s main HVAC system.
2. How does a heat recovery ventilation system save energy?
The system transfers some of the energy contained in outgoing conditioned air to incoming outdoor air. This can reduce the amount of heating or cooling required to condition fresh air, although actual savings depend on climate, airflow, operating hours, and recovery efficiency.
3. What is the difference between HRV and ERV?
An HRV primarily transfers sensible heat between incoming and outgoing air. An ERV can transfer sensible and latent energy, including moisture, depending on its recovery media. The appropriate system depends on the building and climate conditions.
4. Does heat recovery ventilation improve indoor air quality?
A heat recovery ventilation system supports controlled outdoor air supply and indoor air exhaust, which can contribute to ventilation and indoor air quality management. Additional filtration and air purification may be required for specific airborne contaminants.
5. How do you choose a heat recovery ventilation system?
Consider required airflow, recovery efficiency, temperature and humidity conditions, pressure drop, filtration, fan performance, controls, maintenance access, and building operating requirements. Professional system assessment can help match equipment to the application.
